一、VAULT的安装与配置
2、Vault配置

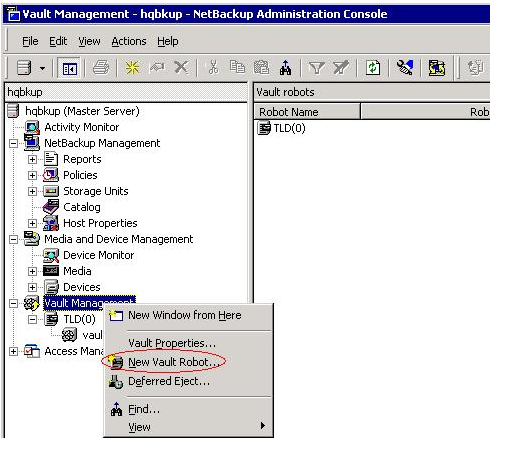

*首先右击“Vault Management”，选择“New Vault Robot…”来创建Vault的机械手。
*指定Vault机械手的“Robot number”为“0”。

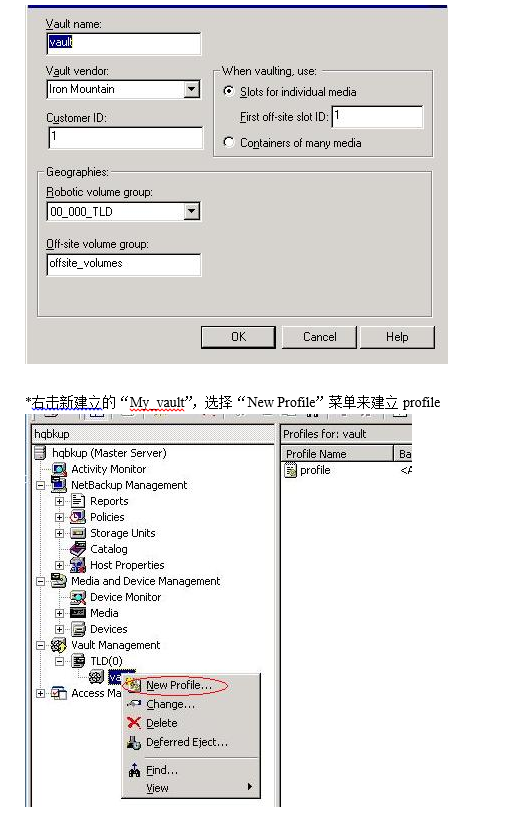

*Vault Robot创建完成后，如下图所示：Robot Name为“TLD(0)”；Robot Type为“TLD”；Robot Number为“0”；Volume Database Host为“hqbkup”；Robot Control Host为“hqbkup”。

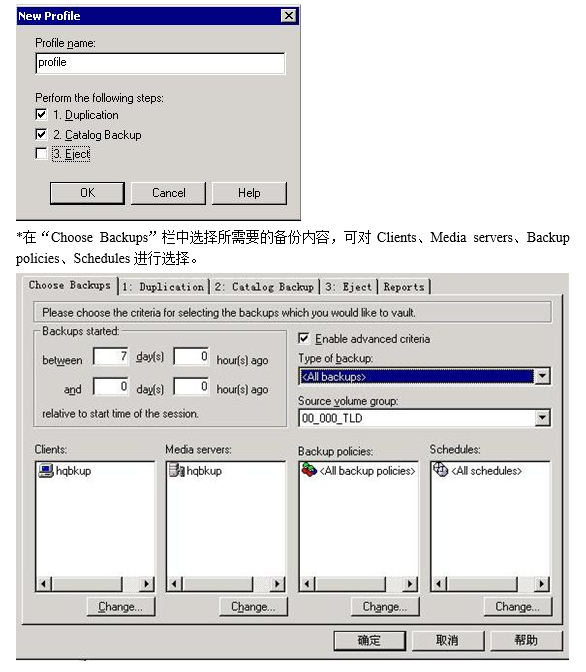

*输入Profile name为“profile”，选择所有的“Perform the following steps”即：Duplication、Catalog Backup。
图上这个时间很总要，将时间范围内的备份进行vault.

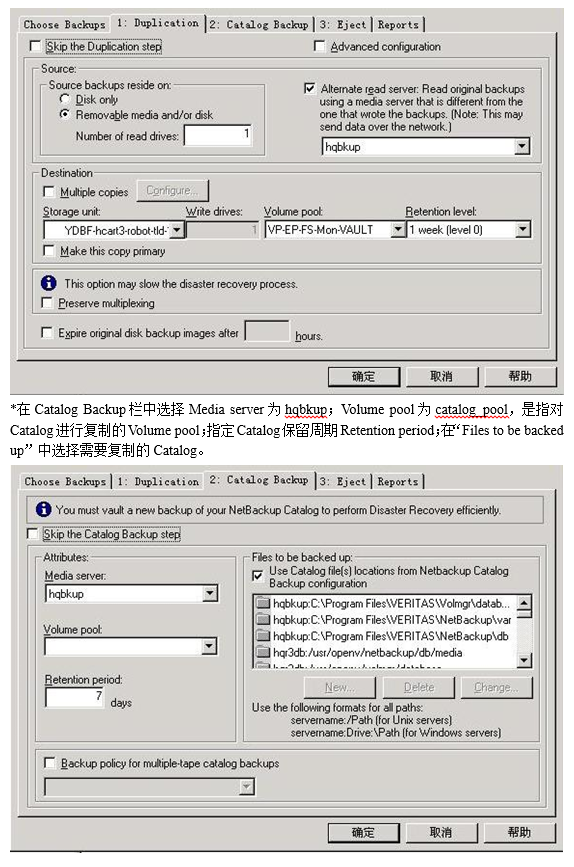

*在“Duplication”中选择进行复制的Storage unit为YDBF_hcart3_robot_tld_0；Volume pool为VP-EP-FS-Mon-VAULT；并指定保留周期Retention level。

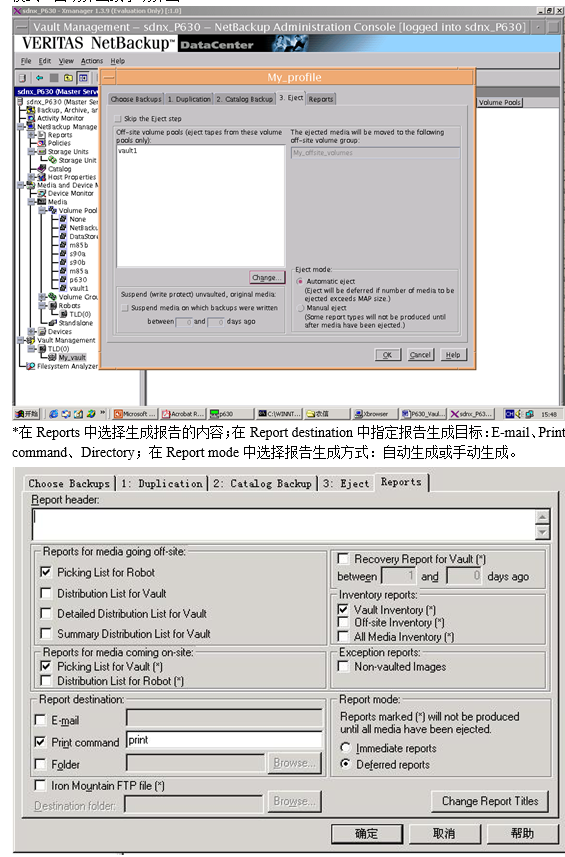

*在Eject栏中加入复制完成后需要弹出的Volume pool即vault1；在Eject Mode中选择弹出模式：自动弹出或手动弹出。

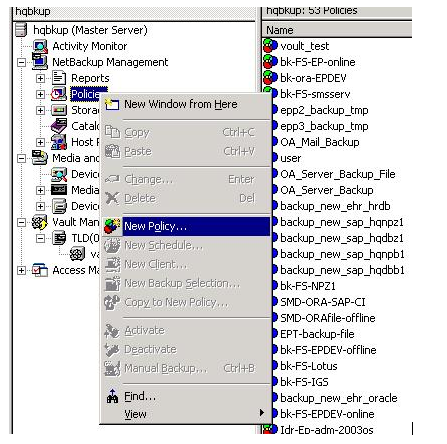

2、创建Vault的备份策略。

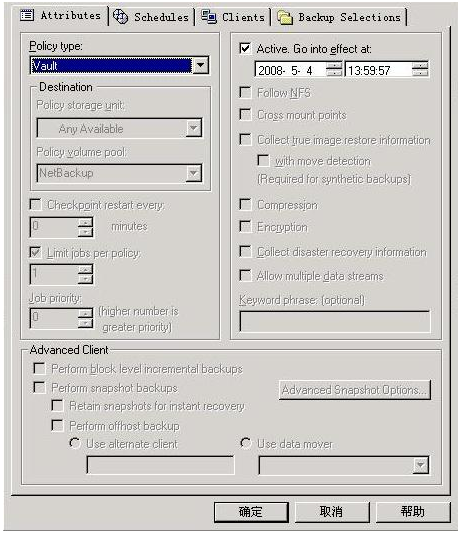

在Policy type中选择Vault。

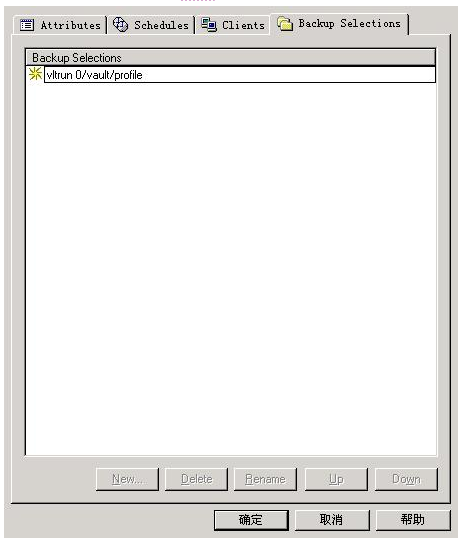

在Files中加入Vault脚本： vltrun 0/vault/profile_name
Clients中所有选择全部为灰色，不用加入任何Clients。

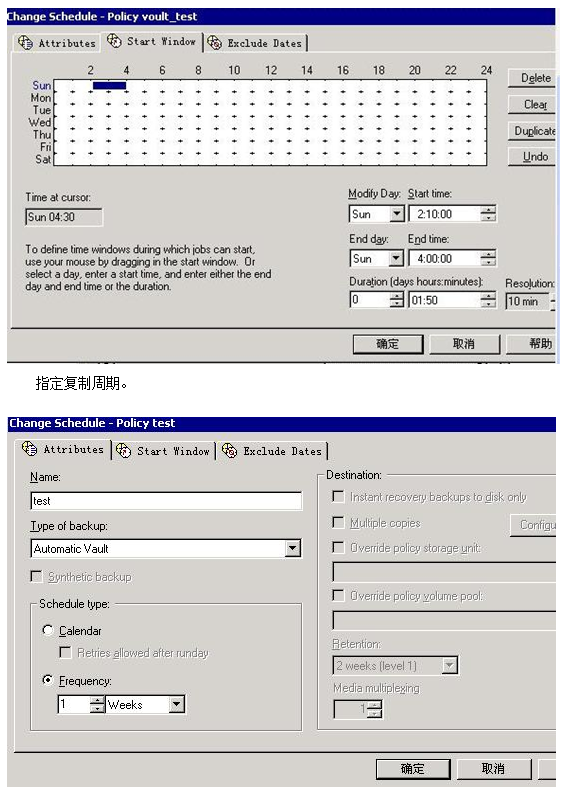

创建Schedule，与普通备份任务相同。
二、日常观察系统运行情况

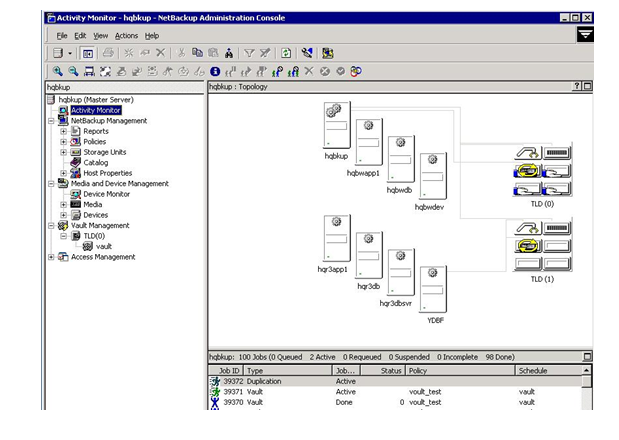

点击“Activity Monitor”观察已经完成的作业的status为0，则备份正常，如果为非“0”，则备份不正常。
正常工作时状态：
1、VAULT基本程序的安装
在Windows平台，Vault功能在安装NBU Server时已经安装，不需要单独安装，只需要通过License激活就可。
在unix平台，vault功能需要安装单独的模块和补丁程序：
>./install
VERITAS Installation Script
Copyright 1993 – 2005 VERITAS Software Corporation, All Rights Reserved.
Installation Options
1 NetBackup Add-On Product Software
2 NetBackup Database Agent Software
q To quit from this script
Choose an option [default: q]: 1
**********
NetBackup Add-On Product Installation
Choose the Add-On Products you wish to install
one at a time or select Install All Add-On Products.
1) NetBackup Advanced Reporter
2) NetBackup Core Frozen Image Services
3) NetBackup Extended Frozen Image Services
4) NetBackup FlashBackup
5) NetBackup Global Data Manager
6) NetBackup for NDMP
7) NetBackup Offhost and SAN Data Movement Services
8) NetBackup Vault
9) Install All Add-On Products
q) Done Selecting Products
x) Exit from this Script
Choose an option: 8
Choose an option: q
You have chosen to install these Add-On Products:
NetBackup Vault
Is this list correct? (y/n) [y]
**********
Installing NetBackup Vault
Do you want to install NetBackup Vault for rs6000? (y/n) [y]
NetBackup Vault will be installed in /usr/openv/netbackup/db and
/usr/openv/netbackup/bin.
x .
x ./bpbrmvlt, 1230363 bytes, 2404 media blocks.
x ./goodies
x ./goodies/vlt_ejectlist_notify, 7671 bytes, 15 media blocks.
x ./goodies/vlt_endeject_notify, 6693 bytes, 14 media blocks.
x ./goodies/vlt_end_notify, 6590 bytes, 13 media blocks.
x ./goodies/vlt_start_notify, 6669 bytes, 14 media blocks.
x ./vltadm, 693072 bytes, 1354 media blocks.
x ./vltcore, 2009653 bytes, 3926 media blocks.
x ./vlteject, 672101 bytes, 1313 media blocks.
x ./vltinject, 315728 bytes, 617 media blocks.
x ./vltoffsitemedia, 320180 bytes, 626 media blocks.
x ./vltopmenu, 348410 bytes, 681 media blocks.
x ./vltrun, 383401 bytes, 749 media blocks.
x .
x ./vltadm
x ./vltadm/Catalog_Backups, 1485 bytes, 3 media blocks.
x ./vltadm/Choosing_Backups, 1504 bytes, 3 media blocks.
x ./vltadm/Duplication, 1411 bytes, 3 media blocks.
x ./vltadm/Eject, 1129 bytes, 3 media blocks.
x ./vltadm/Help, 1987 bytes, 4 media blocks.
x ./vltadm/Main, 2008 bytes, 4 media blocks.
x ./vltadm/Preferences, 282 bytes, 1 media blocks.
x ./vltadm/Profiles, 1555 bytes, 4 media blocks.
x ./vltadm/Reports, 6249 bytes, 13 media blocks.
x ./vltadm/Robots, 293 bytes, 1 media blocks.
x ./vltadm/Tutorial, 974 bytes, 2 media blocks.
x ./vltadm/Vaults, 610 bytes, 2 media blocks.
Please refer to the NetBackup Vault System Administrator's
Guide for complete details on use and configuration of
NetBackup Vault.
NetBackup Vault installation completed.
**********
Execution of ./install is complete.
File /tmp/install_options_trace.23248 contains a trace of this install.
VERITAS Installation Script
Copyright 1993 – 2002 VERITAS Software Corporation, All Rights Reserved.
Installation Options
1 NetBackup Add-On Product Software
2 NetBackup Database Agent Software
q To quit from this script
Choose an option [default: q]: q
A trace of the install can be found in /tmp/install_options_trace.23248
That file can be deleted after you are sure the install was successful.
